Is it time to replace your filter?

Is the filter still performing properly? Don't guess – measure it.

In many HVAC and industrial systems, filters are replaced according to a maintenanceschedule or simply "just in case." In reality, however, their actual condition can be assessedmuch more accurately.

All you need to do is measure the pressure upstream and downstream of the filter.

One device, two measurements, one answer.

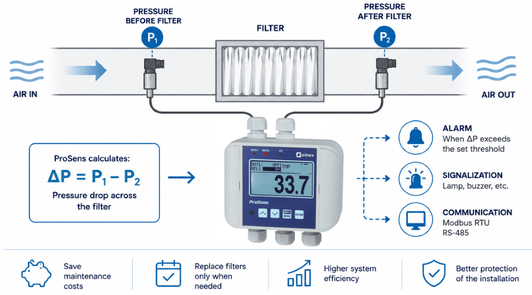

ProSens with two universal inputs allows you to connect two pressure transmitters and, thanks to its built-in mathematical functions, continuously calculate:

ΔP = P₁ − P₂

that is, the actual pressure drop across the filter.

When the pressure difference exceeds the defined threshold, the device can:
🚨 trigger an alarm,
💡 control an indicator,
📡 send information to the supervisory system via Modbus RTU.

Why is it worth it?

✔ replace filters exactly when needed,
✔ reduce maintenance costs,
✔ increase system efficiency,
✔ everything handled by a single device – without an additional PLC controller.

This is just one example

The two universal inputs and built-in mathematical functions of ProSens enable many moreapplications, such as:

• measuring the temperature difference across heat exchangers,
• calculating the dew point,
• adding or subtracting analog signals,
• many other custom applications.

ProSens
Measure. Calculate. Control. All in one device.
